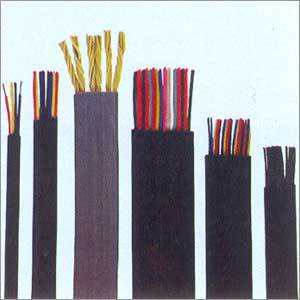

Flat Travelling Cables

Flat Travelling Cables

Product Details:

  • Product Type Flat Travelling Cables
  • Armored Material Copper
  • Insulation PVC
  • Jacket PVC
  • Color Black
  • No Of Core 3
  • Click to View more
X

Flat Travelling Cables Price And Quantity

  • 100 Meter

Flat Travelling Cables Product Specifications

  • Black
  • PVC
  • 3
  • Copper
  • PVC
  • Flat Travelling Cables

Flat Travelling Cables Trade Information

  • 5000 Meter Per Month
  • 7 Days

Product Description

We are a prominent organization providing top-notch quality Flat Travelling Cables that are manufactured from high quality raw materials. These specially manufactured cables are widely appreciated for their fine finish, dimensional accuracy, elevated durability, heat resistance and less maintenance. The Flat Travelling Cables find wide usage in different industries and are best suited to be installed in crane escalators, cable trolleys, and commercial lifts. However, we offer these cables at an economical price. Stringent quality tests are conducted prior to dispatch to ensure their quality.

Other Details:

Flat Travelling Cables

K. Flex flat travelling cables up to 24 core in different sizes viz 1mm , 1.5 mm  are the best suited travelling cables for lifts, cables trolleys, hoists, cranes escalators etc. The flat travelling cables are manufactured using a special type of compound which is blend of PVC and Synthetic Rubber. This special compound enables the cable to meet all kind of requirement as per EN Standards and ensures trouble free operations under most rugged conditions. The flat cables are weather proof with additional properties of U.V. protection. The cables are smoothly working from -30C to + 5C atmospheric temperature.

Table 1

Nominal Cross-Sectional Area mm
Preferred number of cores
0.75
 6,9,12,16,18,20, and 24
1
 4,5,6,9,12,16,18,20, and 24

Table 2

 Number of Cores
 6 9
12
16
18
20
24
 Number of Groups X Number of Cores in Group
 2x3 3x3
3x4
4x4
        2x4              +2x5
5x4
6x4
 Note: A rip-Cord may be added inside each core group

Table 3

 Nominal Cross-Sectional area of conductor

Maximum Diameter of Wire in Conductor   Thickness of Insulation   Thickness of sheathed and clearance    Minimum Insulation resistance at 70C M-Km
 e1 (Min) mm
e2 (Min) mm  e3 (Min) mm
 0.75  0.21  0.6  0.5  0.8  1.2  0,011
 1
 0.21  0.6  0.5  0.8  1.2  0,010
