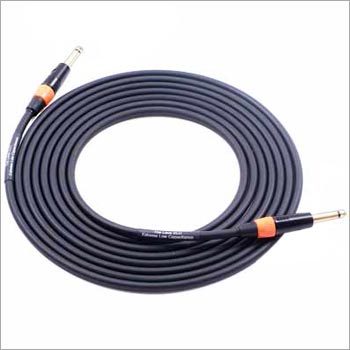

Screened Shielded Instrumentation Cable

About Screened Shielded Instrumentation Cable

Incorporated in 1998, we are a prominent manufacturer, distributor and exporter of wide range of cables and wires including Screened Shielded Instrumentation Cable. These cables are manufactured from top quality galvanized steel, which we source from the reliable vendors. Made using most sophisticated technology, offered cables are known for their precise dimensions, high strength, easy installation and less maintenance. Further, we offer these cables at an economical price. Screened Shielded Instrumentation Cables specially find their application in defense, telecommunication, and electronic industries.

We have expertise in manufacturing high quality Screened Shielded Instrumentation cables. These cables are Special generally manufactured with conductor sizes 0.25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm, conforming to BS: 5308- I & II, IEC-189, IS: 1554- I/ 88, VDE 0815.

Core: From Single core/single pair to 100 core or 50 pair. We also manufacture silicon rubber / kepton / fiber glass Asbestos and other king of special Cables.

• Applications: Screen shielded instrumentation cables are used in data acquisition systems,  PA systems, computer networking, digital control / measuring & communication systems. These are specially designed to transmit signals without any external interference
• Conductor: Stranded / Solid / Flexible copper (bare / tinned)
• Insulation: PVC - HR; PE, LSZH
• Shielding: individual & overall or overall screen by AI-mylar tape copper tape / copper wire braid
• Inner sheath: PVC- HR / FR / FRLS; PE, LSZH
• Armor (Armored cables) Galvanized steel round wire - strip
• Outer sheath: PVC - HR / FR / FRLS; PE, LSZH

Copper Conductor PVC Shieathed, Shielded Cables
Cross Sectional Area MM2 CM		Insulation Thickness in MM	Coverage %	Diameter of Shield Wire MM.	CR At 20šC / KM ATC Wire	Shieath Thickness MM.	Overall Dia of Cables
0.50	2C	0.6	80	0.10	40.10	0.90	6.25
0.50	3C	0.6	80	0.10	40.10	0.90	6.30
0.50	4C	0.6	80	0.10	40.10	0.90	7.50
0.75	2C	0.6	80	0.10	26.70	0.90	7.0
0.75	3C	0.6	80	0.10	26.70	0.90	7.10
0.75	4C	0.6	80	0.10	26.70	0.90	7.25
1.0	2C	0.6	80	0.10	20.00	0.90	7.20
1.0	3C	0.6	80	0.10	20.00	0.90	7.25
1.0	4C	0.6	80	0.10	20.00	0.90	8.25
1.5	2C	0.6	80	0.10	13.70	0.90	7.40
1.5	3C	0.6	80	0.10	13.70	0.90	7.50
1.5	4C	0.6	80	0.10	13.70	0.90	8.50
1.5	5C	0.6	80	0.10	13.70	1.0	9.20
1.5	8C	0.6	80	0.10	13.70	1.10	11.25
1.5	12C	0.6	80	0.10	13.70	1.10	13.25
1.5	19C	0.6	80	0.10	13.70	1.10	16.10
1.5	24C	0.6	80	0.10	13.70	1.20	18.0
1.5	61C	0.6	80	0.10	13.70	1.25	27.20
1.5	37C	0.6	80	0.10	13.70	1.20	21.10
2.5	2C	0.7	80	0.10	8.21	0.9	8080
2.5	3C	0.7	80	0.10	8.21	0.9	8.90
2.5	4C	0.7	80	0.10	8.21	1.0	10.15
4.0	2C	0.8	85	0.10	5.09	1.0	10.60
4.0	3C	0.8	85	0.10	5.09	1.10	10.65
4.0	4C	0.8	85	0.10	5.09	1.10	12.50
6	2C	0.8	90	0.10	3.39	1.10	12.00
6	3C	0.8	90	0.10	3.39	1.10	12.10
6	4C	0.8	90	0.10	3.39	1.20	13.75
10	2C	1.0	90	0.15	1.95	1.20	16.55
10	3C	1.0	90	0.15	1.95	1.20	17.60
10	4C	1.0	90	0.15	1.95	1.30	19.70

Customizable Cable Solutions for Industrial Demands

Our Screened Shielded Instrumentation Cable is available in lengths tailored to your requirements, ensuring you have just the right amount for your installation. Common drum sizes include 100m, 200m, and 500m to suit small to large projects. With options for conductor count and gauge, these cables cater to diverse control panel configurations and automation needs.


Quality Design for Reliable Data Transmission

Manufactured with high-conductivity annealed copper and protected by aluminum mylar tape shielding plus a tinned copper drain wire, these cables minimize signal loss and electromagnetic interference. The robust insulation and jacket materials (PVC, XLPE, LSZH) provide mechanical strength and chemical resistance, giving durability even in harsh industrial environments.


Versatile Applications Across Industries

Ideally suited for use in process industries, instrumentation, industrial electronics, and communication, our cables enable secure data transfer and control. Install them indoors or outdoors in fixed positions for reliable service over time. Color-coded or numbered cores make connection and identification straightforward, speeding up installation and maintenance.
