Twisted Pair Lan Cable

Twisted Pair Lan Cable
Twisted Pair Lan Cable
Product Code : 14
Product Description

Owing to rich industry experience, we are an eminent manufacturer, distributor, and exporter of a wide range of Twisted Pair LAN Cables. It is manufactured using different colored twisted wires that are procured from our trusted vendors. The Twisted Pair LAN Cable is known for its high speed data transmission using a LAN cable. It is a guided transmission media and is used in different industries for high speed data transmission. Our offered twisted LAN cables are known for their high resistivity, secure data transmission, low energy consumption, less maintenance and low cost.

Other details of Twisted Pair Lan Cable

Electrical Performance: (At 100 MHz)

  • Standards: Tie/Eia 568 B.2, UL Listed for CAT 5 E
  • Impedance : 100 + / -15 ohm
  • (NVP) Velocity of Propagation: 65% min. @ 100 MHz
  • Delay Skew: 45 ns / 100 mtrs. @ 20 deg. C max.
  • Propagation: 538 ns / 100 mtrs. @ 100 MHz @ 20 deg. C max
  • Delay DC Resistance: 9.38 ohm / 100 mtrs. max. @ 20 deg. C max
  • Mutual Capacitance: 5.60 nF / 100 mtrs. max.

Description

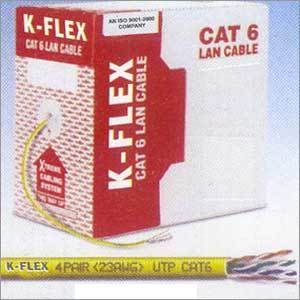

  • 4 Pair Unshielded Twisted Core Colour Pair (UTP/S.T.P.) Category 6 LAN Cable
  • Standard Length: 305 Meters (1000 Feet)
  • Packaging: Tangle ree cable pack in laminated corrugated box
  • Core Colour: Pair 1: White -  Blue, Pair 2: White - Orange, Pair 3: White - Green, Pair 4: White - Brown
  • Sheath: Fire Retardant  PVC Compound (FRPVC)
  • Approx Cable OD: 6.5 mm
  • Sheath Colour : Yellow
  • Operating Environment: Indoor
  • Flame Rating: 60 deg. C As per UL 1581 CMX

Electrical Performance: (At 250 MHz)

  • Standards: Tie/Eia 568 B.2-1 Draft 9A
  • Impedance: 100 + / -15 ohm
  • (NVP) Velocity of Propagation: 62.10% min. @ 250 MHz
  • Delay Skew: 45 nx / 100 mtrs. max. @ 20 deg. C for 1 MHz - 250 MHz
  • Propagation: 536 nx / 100 mtrs. max. @ 20 deg. C
  • Delay DC Resistance: 9.38 ohm / 100 mtrs. max. @ 20 deg. C
  • Mutual Capacitance: 5.60 nF / 100 mtrs. max.

Application

This Category 6, four pair cable is high-speed high performance, 100 ohm impedance cable capable of carrying high bit-rate signaling for extended distances in horizontal cabling. Signal amplifiers are not required for a length of 328, feet (100M). Applications can include Voice, ISDN, ATM 155 Mbps, ATM 622 Mbps, 100 Mbps TPDDI, Fast anf Giga Ethernet, and IEEE 802.3/5/12, 100 BASE VG (100 BASE NE), 100 BASE-T Mbps TP- PMD, 1000 BASE-T, and any other further applications designed for Category 6 Cables.

Physical Specification:

  • Conductor: 213 AWG Annealed bare solid copper.
  • Insulation: High Density Polyethylene

Comparative Performance: Advantage K. Flex

 Frequency (MHz)
Attenuation Max. dB/100M @ 20 deg. C

Return loss (dB) Min

Next (dB) Min

PS Next (dB) Min  Elfext (dB) Min   PS ElFEXT (dB) Min

Acr/Next (dB) Min.

1.00   2.02  1.82 20.00   45.88 74.30   88.25  72.30  79.56  67.80  74.55  64.80  72.01  72.50  86.10
 4.00  3.78  3.70  23.01  45.44  65.30  86.59  63.3  77.01  55.70  65.92  52.80  63.75  61.90  82.53
 8.00  5.32  5.27  24.52  45.02  60.80  74.44  58.50  70.07  49.70  61.34  46.70  58.49  56.00  71.11
 10.00  5.95  5.91  25.00  44.62  29.30  75.92  57.30  68.91  47.80  59.08  44.80  58.15  53.90  29.99
 16.00  7.55  7.52  25.00  39.60  26.20  74.87  54.20  61.08  43.70  58.42  40.70  57.02  49.40  67.35
 20.00  8.47  8.44  25.00  38.00  24.80  68.83  52.80  65.47  41.70  55.77  38.80  54.66  47.20  63.39
 25.00  9.51  9.47  24.32  38.12  53.30  67.34  51.30  60.97  39.80  54.52  36.80  53.96  44.80  58.84
 31.25  10.72  10.60  23.64  38.66  51.90  64.88  49.90  58.29  37.90  60.46  34.90  58.32  42.30  55.16
 62.50  15.38  15.28  21.54  36.70  47.40  63.72  45.40  53.97  31.80  60.12  28.90  56.99  33.50  49.79
 100.00  19.80  19.59  20.11  41.88  44.30  60.08  42.30  52.35  27.80  61.18  24.80  58.74  26.50  42.66
 110.00  20.85  20.61  19.82  38.52  43.70  57.49  41.70  49.74  26.90  66.42  24.00  64.27  24.90  37.52
 120.00  21.86  21.60  19.55  36.26  43.10  54.63  41.10  48.66  26.20  56.24  23.20  53.70  23.40  35.88
 14.00  23.79  23.47  19.08  34.28  42.10  53.53  40.10  48.01  24.80  60.32  21.90  59.50  20.70  33.24
 155.00  26.16  24.79  18.77  33.80  41.40  51.15  39.40  44.20  23.90  60.92  21.00  59.06  18.80  27.11
 175.00  26.91  26.48  18.41  32.13  40.70  49.18  38.70  44.00  22.90  63.63  19.90  58.96  16.40  25.17
 200.00  28.98  28.47  18.00  31.38 39.80
 48.88  37.80  43.82  21.70  61.72  18.80  60.01  13.70  24.88
 210.00  29.78  29.24  17.85  30.82  39.50  47.65  37.50  44.84  21.30  52.32  18.40  58.45  12.70  20.21
 220.00  30.57  29.89  17.70  28.88  39.20  46.31  37.20  43.86  22.90  51.55  18.00  47.31  11.70  20.20
 230.00  31.34  30.73  17.58  28.22  38.90  45.96  36.90  43.06  20.50  50.55  17.60  47.44  10.70  18.33
 240.00  32.10  31.46  17.45  26.76  39.60  45.02  36.60  42.82  21.10  51.80  17.20  47.32  9.70  16.66
 250.00  32.85  32.17  17.32  25.48  38.30  44.12  36.30  41.92  19.80  51.11  16.80  46.66  8.80  15.72
