Twisted Pair Cable

Twisted Pair Cable

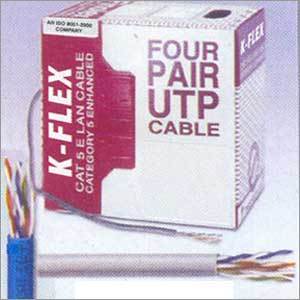

Twisted Pair Cable
Product Code : 13
Product Description

Other details of Twisted Pair Cable

Electrical Performance: (At 100 MHz)

  • Standards: TIE/EIA 568 B.2, UL Listed for CAT 5
  • Impedance (NVP) Velocity of Propagation: 65% min. @ 100 MHz
  • Delay Skew: 45 ns/ 100 mtrs. @ 20 deg. C max.
  • Propagation Delay: 538 ns / 100 mtrs. @ 100 MHz, @ 20 deg. C max.
  • DC Resistance: 938 ohm / 100 mtrs. max. @ 20 deg. C max.
  • Mutual Capacitance: 5.6 nF / 100 mtrs. max.

Description:

  • 4 Pair Unshielded Twisted Pair UTP/S.T.P.) Category 5 enhanced LAN Cable
  • Standard Length: 305 Meters (1000 Feet)

Packaging:

  • Tangle free cable pack in laminated corrugated box

Application

This Category 5E, four pair cable is a high-speed high performace, 100 ohm impedance cable capable of carrying high bit-rate signaling for extended distance in horizontal cabling. Signal amplifiers are not required for a length of 328, feet (100M). Applications can included Voice. ISDN, ATM 155 Mbps, ATM 622 Mbps, 100 Mbps TPDDI, Fast anf Giga Ethernet, 100 Base-T Mbps TP-PMD, 1000 Base-T

Physical Specification:

  • Conductor: 24 AWG Anneated bare solid copper.
  • Insulation: High Density Polythelene
  • Core Colour: Pair 1: White - Blue, Pair2: White -  Orange, Pair 3 :White - Green , Pair 4 : White - Brown
  • Sheath: Fire Retardant PVC Compund (FRPVC)
  • Approx. Cable OD: 0.5 mm
  • Sheath Colour: Grey
  • Operating Environment: Indoor
  • Flame Rating: 60 deg. C As per UL 1581 CMX

Electrical Performance: (At 200 MHz)

  • Standards: Tie/Eia 568 B.2, Extended to 200 MHz
  • Impedence: 100 + /-15 ohm
  • (NVP Velocity of Propagation: 65% min.
  • Delay Skew: 45 ns / 100 mtrs. @20 deg. C max.
  • Propagation Delay: 537 ns / 100 mtrs @ 200 MHz @ 20 deg. C max.
  • DC Resistance: 938 ohm / 100 mtrs. @ 20 deg. C max.
  • Mutual Capacitance: 5.60 nF / 100 mtrs. max.

Comparative Performance: Advantage K. Flex

 Frequency (MHz)
Attenuation Max. dB/100M @20 deg. C

 Return / loss (dB) Min
 Next (dB) Min.   PS Next (dB) Min.   PS Elfext (dB) Min.  ACR/ Next (dB) Min.
 1.00  2.04  1.94  20.00  35.42  65.00  79.56  62.00  76.00  60.80  64.23  63.50 77.98
 10.00  6.47  6.26  25.00  36.18  50.00  62.46  47.00  61.72  40.80  55.55  44.50  56.46
 16.00  8.25  8.01  25.00  35.94  47.00  61.72  44.00  56.79  36.70  52.81  39.80  54.43
 20.00  9.27  8.99  25.00  37.34  46.00  61.38  43.00  58.54  34.70 49.13
 37.50  52.46
 31.25  11.72  11.38  23.64  36.08  43.00  55.93  40.00  52.79  30.90  47.65  32.30  44.62
 62.50  16.99  16.34  21.54  33.89  38.00  49.85  35.00  47.46  24.80  43.84  23.10  34.22
 100.00  21.98  20.69  20.11  31.14  35.00  47.72  32.00  46.48  20.80  41.72  15.50  30.72
