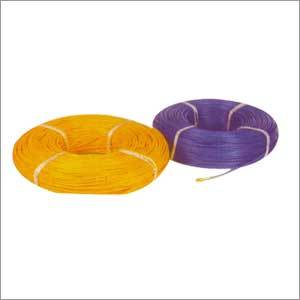

Insulated Cables

Insulated Cables
Insulated Cables
Product Code : 11
Product Description

We are an ISO certified company, engaged in manufacturing and exporting the array of Insulated Cables. We manufacture the offered cables by making use of finest grade material that is sourced from the reliable market vendors. The preferred cables are developed in compliance with the set industrial norms and standards. These are fine in finish so that widely demanded for both long and short distance data transmission. Further, we offer our range of Insulated Cables at most competitive prices.

Features:



  • Flame resistant
  • Flexible in quality
  • High tensile strength



Further Details:



Other details:

PVC Insulated Electrical FR HR Insulated Wires

To add to the existing range of electrical wires, K. Flex introduces - Flame Retardant PVC insulated electrical wires, Fr Hr Insulated Wires etc

Each wire is manufactured using 99.97% pure, electrolytic grade, bright annealed bare copper with more than 100% conductivity better purity & conductivity. of copper ensures greater saving of electrical energy and thus helps to reduce electricity bills. The conductor is made of multiple strands of finely drawn copper wires which leads more flexibility into these wires thereby considered as ideal wires for conduit wiring.

The wires are insulated with a Flame Retardant (FR) PVC compound which helps in restricting or opposing spread of fire even at very extreme temperatures. All wires are subjected to high voltage spark testing to make sure that there are no weak spots in the insulation can lead any mis happening or disaster. This FR / HR / PVC compound has a high oxygen and temperature index.

These wires meet the requirements of IS 694 : 1990 and tested under standard quality parameters. They are also offer Flame Retardant (FR) properties which means extra protection against fires, electrical shock, short circuit etc.

 Additional FR Properties
 Test Specification
 Specified Values
 Critical Oxygen Index
 ASTM-D 2863  Oxygen Index  Minimum 29%
 Temperature Index
 ADTM-D 2863 & BICC Hand Book Chapter No. 6  Minimum Temperature Index 250°C
 Also meets requirements of Flammability Test as per IEC 60332-1

K-Flex-Single Core, Unsheathed Wires in Voltage Grade 1100 V

 Nominal area of copper Conductor Sq. mm

 Number / Nominal Diameter of Strands mm

Thickness of insulation (Nominal) mm


Approximate Overall Diameter or wire
mm

Current carrying capacity # 2 wires, single phase

Resistance (Max_ per Km. @ 20°C Ohms

 In conduit / Trucking Amps.
Unenclosed-clipped directly to a surface or on cable tray Amps.
 0.75 24/.2**   0.6 2.3   7 26.0
 1.0  14/.3*  0.7  2.7  11  12  18.10
 1.5  22/.3*  0.7  3.1  16  18  12.10
2.5  36/.3*  0.8  3.7  18  22  7.41
 4.0  56/.3**  0.8  4.3  24  29  4.95
 6.0
 84/.3**  0.8  4.8  31  37  3.30


Standard Colours : Black, Red, Blue, Yellow and green (for earthing). Supplied in 90 meter length

  • As per IS 3961 (Part V) - 1968
  • As per conductor Class 2 of IS 8130 : 1984
  • BIS licence CM/L-8174477
  • As per conductor Class 5 of IS 8130" 1984
