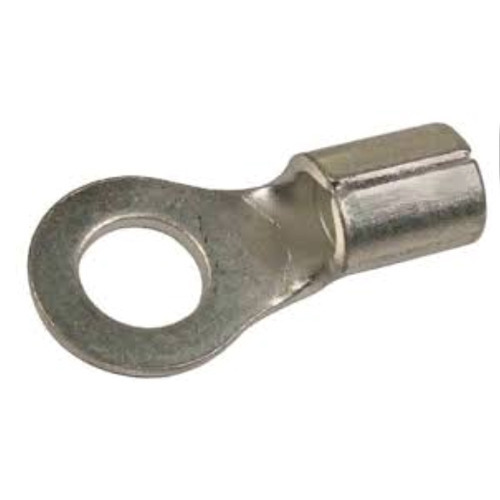

Compression Cable Lugs

Name: Compression Cable Lugs
Brand: K.M Cables & Conductors
Price: 10 INR
Availability: InStock

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Compression Cable Lugs Specification

Sealed
NO

Surface Treatment
Tin Plated for Corrosion Resistance

Thickness
1-5 mm depending on size

Cable Diameter
6 mm to 300 mm

Product Type
Compression Cable Lugs

Material
High Conductivity Electrolytic Copper

Application
Electrical cable connection and termination

Contact Resistance
0.5 m

Insulation Resistance
>1000 M

Diameter
Depends on cable size (6 mm to 300 mm)

Terminal Socket
Copper Palm

Style
Straight Barrel

Fittings
Compression Type

Rated Voltage
Up to 1100V

Weight
Varies as per size (approx. 10g to 250g)

Color
Natural / Tin-Plated

Packing Type
Box / Polybag

Mounting Type
Crimp / Compression

Flame Retardant
Yes, as per IS/IEC requirements

Standard
IS 8309/IS 13573 / IEC 61238

Operating Temperature Range
-30°C to +105°C

Compression Cable Lugs Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100000 Pieces Per Day

Delivery Time
1 Days

About Compression Cable Lugs

We are successfully engaged in offering a broad spectrum of Compression Cable Lugs to our esteemed customers. These lugs are made using highest grade raw material and advanced techniques for ensuring their reliability and dimensional accuracy. The provided lugs are widely used for several types of electrical underground cable applications. The offered Compression Cable Lugs are designed in a manner that makes the cable insertion easy. The lugs feature electro tinned finishing for improved conductivity. This is obtainable at nominal price from us.

Superior Electrical Performance

These compression cable lugs use high-conductivity copper, ensuring minimal energy loss, exceptional electrical contact, and reliable transmission. With insulation resistance exceeding 1000 M and contact resistance at or below 0.5 m, they deliver consistent, safe connections, even in demanding environments.

Engineered for Safety and Reliability

Designed to comply with stringent IS and IEC standards for flame retardancy and thermal endurance, these lugs maintain integrity from -30C to +105C. A tin-plated surface further enhances durability by protecting against corrosion, making them suitable for both indoor and outdoor electrical installations.

Versatile Application and Easy Installation

Available in sizes to fit cables from 6 mm to 300 mm and a variety of packing options, these lugs can be crimped or compressed for strong, lasting connections. They are supplied in natural or tin-plated finishes, supporting a range of installation needs for distributors, manufacturers, exporters, and traders.

FAQs of Compression Cable Lugs:

Q: How do you install Compression Cable Lugs for secure cable termination?

A: To install, strip the cable insulation, insert the conductor into the lugs barrel, and use a suitable crimping or compression tool to secure the connection. Ensure the compression is done as per IS/IEC recommendations for optimal performance and safety.

Q: What materials are used in these lugs, and what benefits do they offer?

A: These lugs are made from high conductivity electrolytic copper, often finished with tin plating. This combination provides excellent electrical performance, superior corrosion resistance, and longevity in both indoor and outdoor applications.

Q: Where are Compression Cable Lugs typically used?

A: They are ideal for use in electrical cable connections and terminations across various sectors, including industrial, commercial, power distribution, and infrastructure projects, wherever secure and flame-retardant joints are needed.

Q: What is the rated voltage and operating temperature range for these lugs?

A: They are rated for operation at up to 1100V and can withstand temperatures ranging from -30C to +105C, ensuring suitability for a variety of challenging environments.

Q: What standards do these lugs comply with and why is this important?

A: The lugs meet IS 8309, IS 13573, and IEC 61238 standards, ensuring high levels of safety, compatibility, and performance according to both Indian and international requirements for electrical connectors.

Q: What advantages does the tin-plated finish provide?

A: Tin plating offers enhanced corrosion resistance, which is especially valuable in harsh or humid environments, extending the operational life of the cable lug and ensuring reliable electrical performance over time.
